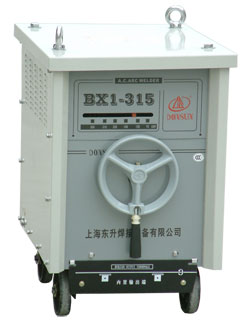

Core type AC welder |
|
 |
‖PRODUCT INTRODUCE |
|
Information
*Single phase moving core type and forced air cooling structure;
*Suitable for welding ferrous metal workpieces with general AC electrode;
*Stable arc, less spatter and deep penetration can ensure welding quality well;
*The machine with simple structure works in high efficiency, and it is also easy to be operated and maintained.
Power Voltage/Frequency
380V/50Hz
Rated Input Capacity
30KVA
Phase Number
1
Rated Duty Cycle
35%
Open Circuit Voltage
71V
Rated Input Current
400A
Rated Load Voltage
36V
Current Adjust Range
75-400A
Insulatin Class
F
Electrode Diameter
2.5-7mm
Dimensions
592×435×691(mm)
Weight
112kg
|
|
|
 |
